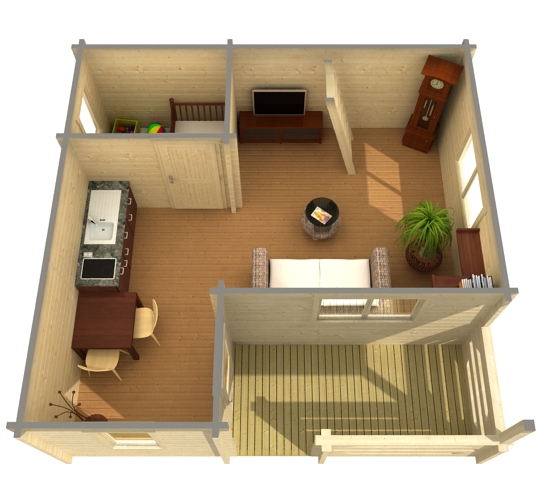

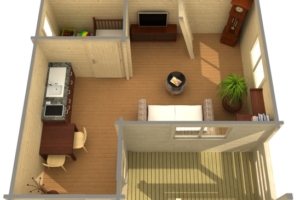

The picture is illustrative

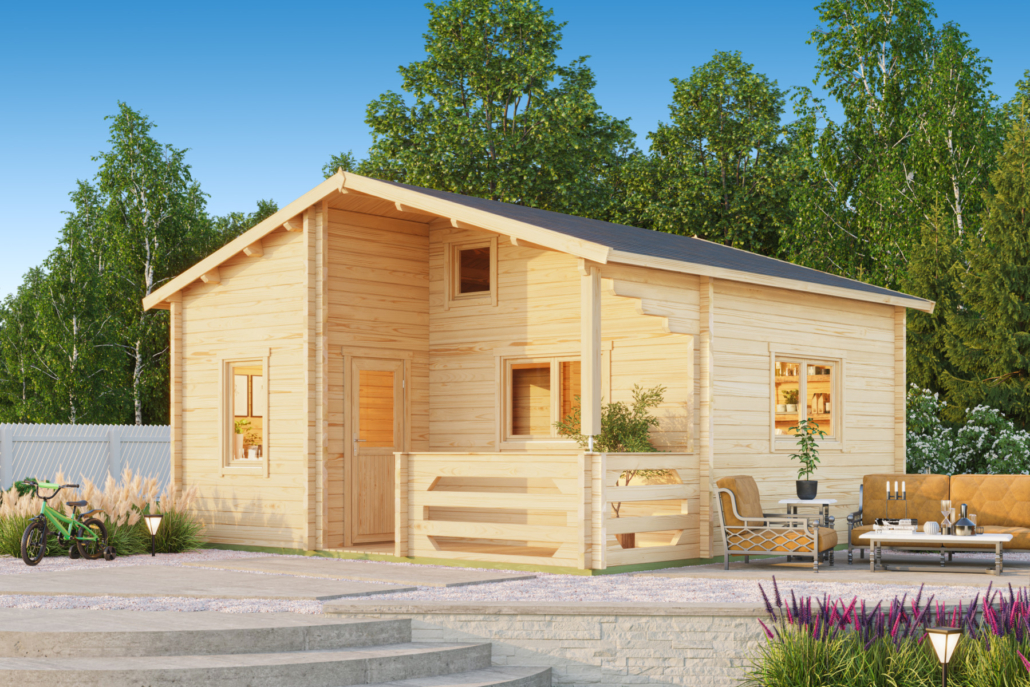

Tigris
| Total area | 33.63 m2 |

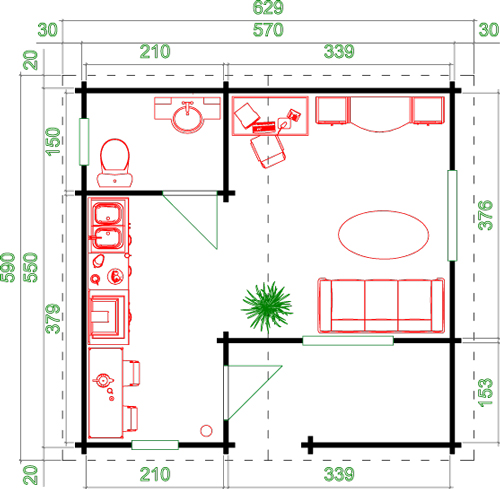

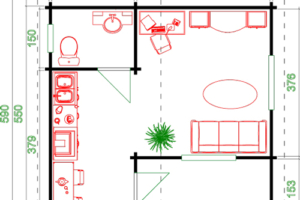

| Wall area | 590*570 cm |
| Wall thickness | 70 mm |
| Building area | 31.35 m2 |
| Windows | glazed unit |
| Netarea | 40 m2 |
| Volume | 77.3 m3 |
| Terrace | included |
| Terrace area | 5.19 m2 |

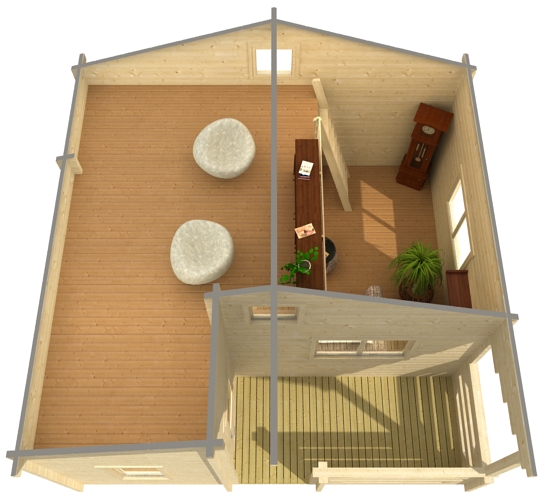

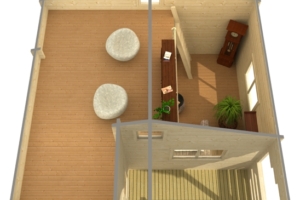

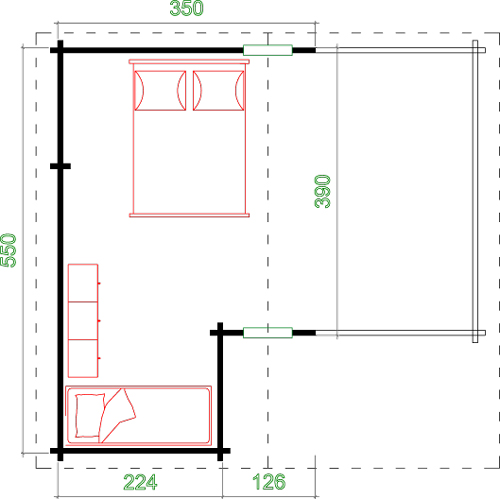

| First floor/sleeping area | 16.17 m2 |
| Wall height | 272 cm |
| Ridge height | 360 cm |
| Roof area | 39.2 m2 |
| Roof overhang | 200 cm |
| Roof slope | 18 ° |
| Shingle consumption | 15 pakki |
Tigris tech. info
Our summer houses’ delivery kit generally includes:
- Impregnated base frame, floor joists and terrace boards (only if terrace is incuded)
- T&G floor boards, 26x90mm or 28x90mm, floor slats
- All wall details
- Tilt-turn windows, with drip mold, glazed, with fittings, interior and exterior slats for the window
- Doors, glazed or solid wood (depending on the model), with lock and handle, including inner and outer boundary slats
- The roof structure with T&G roof boards(20x90mm), gable end boards and eaves boards.
- Storm fittings
- Installation accessories
- Installation instructions
The kit does not include:
- Roofing materials - these can be ordered separately, either roofing felt, bitumen shingles or Onduline self-adhesing aluminium roof film
- Delivery - can be ordered separately
- Installation - can be ordered separately (generally includes transportation)
- Finishing
Approved Estonian Quality !
