Toote pilt on illustratiivne

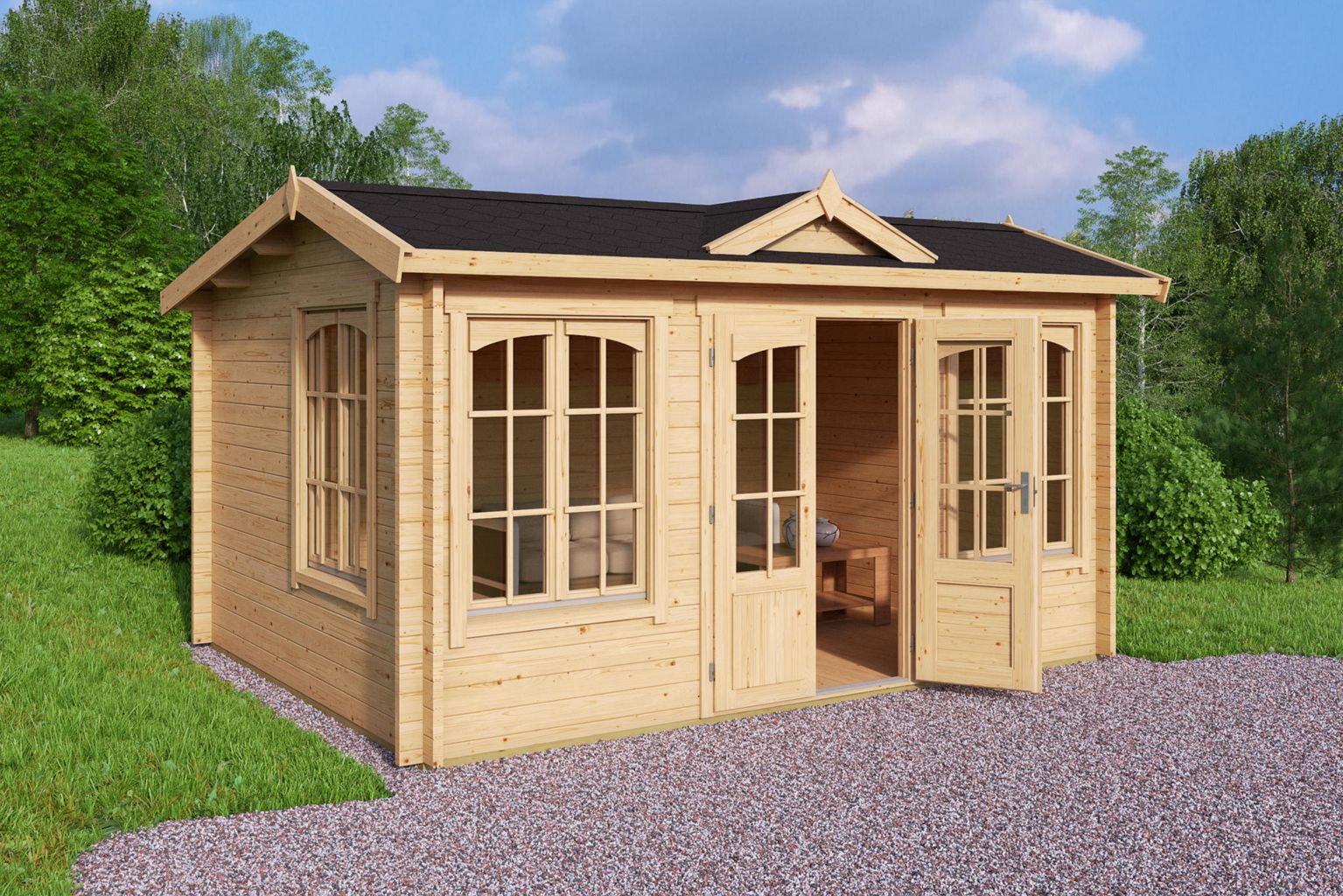

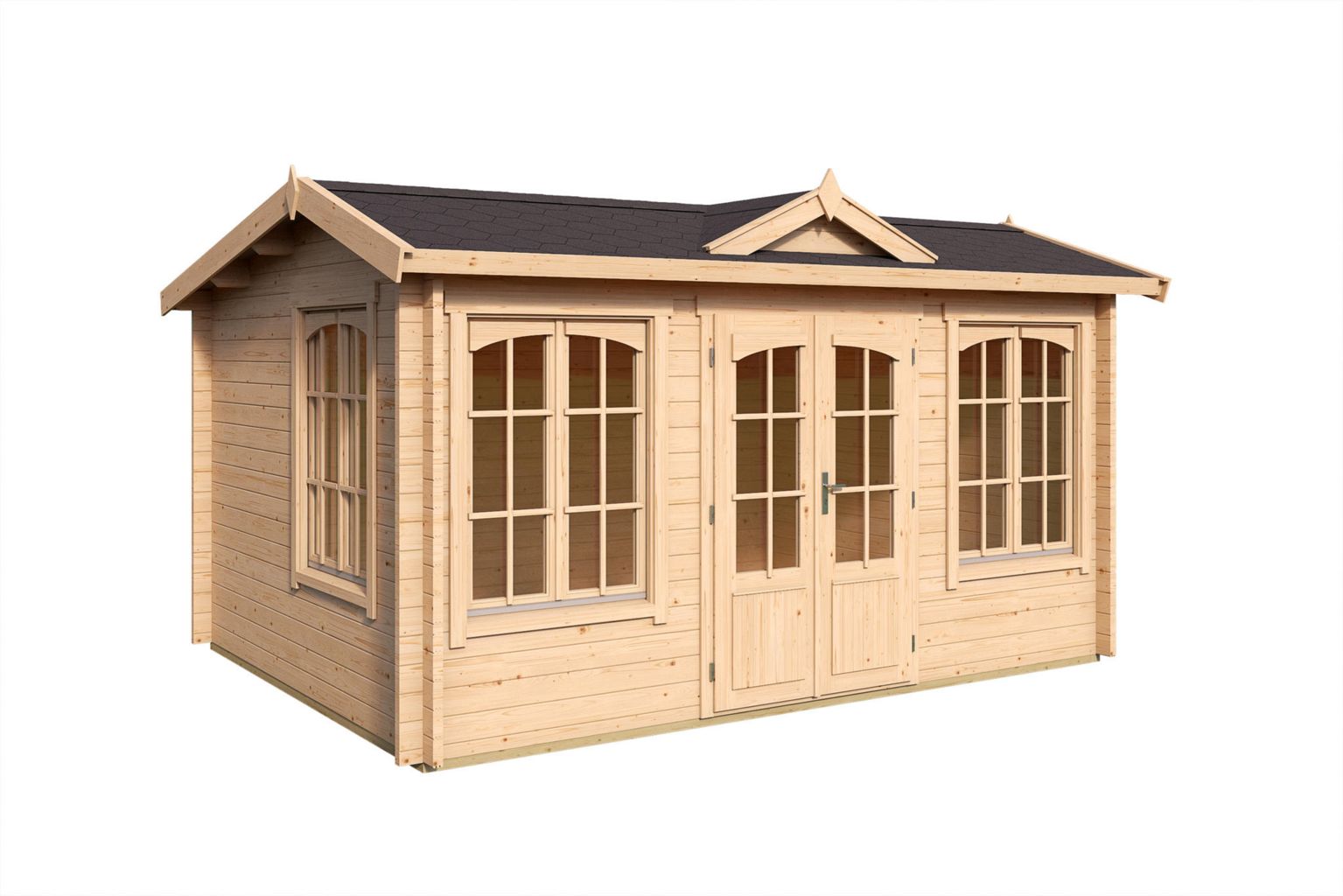

Windsor 44
| Total area | 13.44 m2 |
| Wall area | 420x320 cm |
| Wall thickness | 44 mm |
| Building area | 12 m2 |
| Windows | glazed unit |
| Netarea | 11.4 m2 |
| Wall height | 210.9 cm |
| Ridge height | 239.4 cm |
| Roof area | 16.3 m2 |
| Roof overhang | 20 cm |
| Roof slope | 10.8/17.7/24.6 ° |
| Shingle consumption | 6 packs |
| Bitumen need | 3 rolls |
| Pakage dimensions | 440*118*70 cm |
| Package weight | 992 kg |
Windsor 44 tech. info
Our 'Lux' series delivery-kit generally includes:
- Impregnated base frame, floor joists and terrace boards (only if terrace is incuded)
- T&G floor boards, floor slats
- All wall details
- Tilt-turn or non-opening windows, with drip mold, glazed, with fittings, interior and exterior slats for the window
- Doors, glazed or solid wood (depending on the model), with lock and handle, including inner and outer boundary slats
- The roof structure with T&G roof boards, gable end boards and eaves boards.
- Storm fittings
- Installation accessories
- Installation instructions
The delivery-kit does not include:
- Roofing materials - these can be ordered separately, either roofing felt, bitumen shingles or Onduline self-adhesing aluminium roof film
- Delivery - can be ordered separately
- Installation - can be ordered separately (generally includes transportation)
- Finishing
Approved Estonian Quality !
