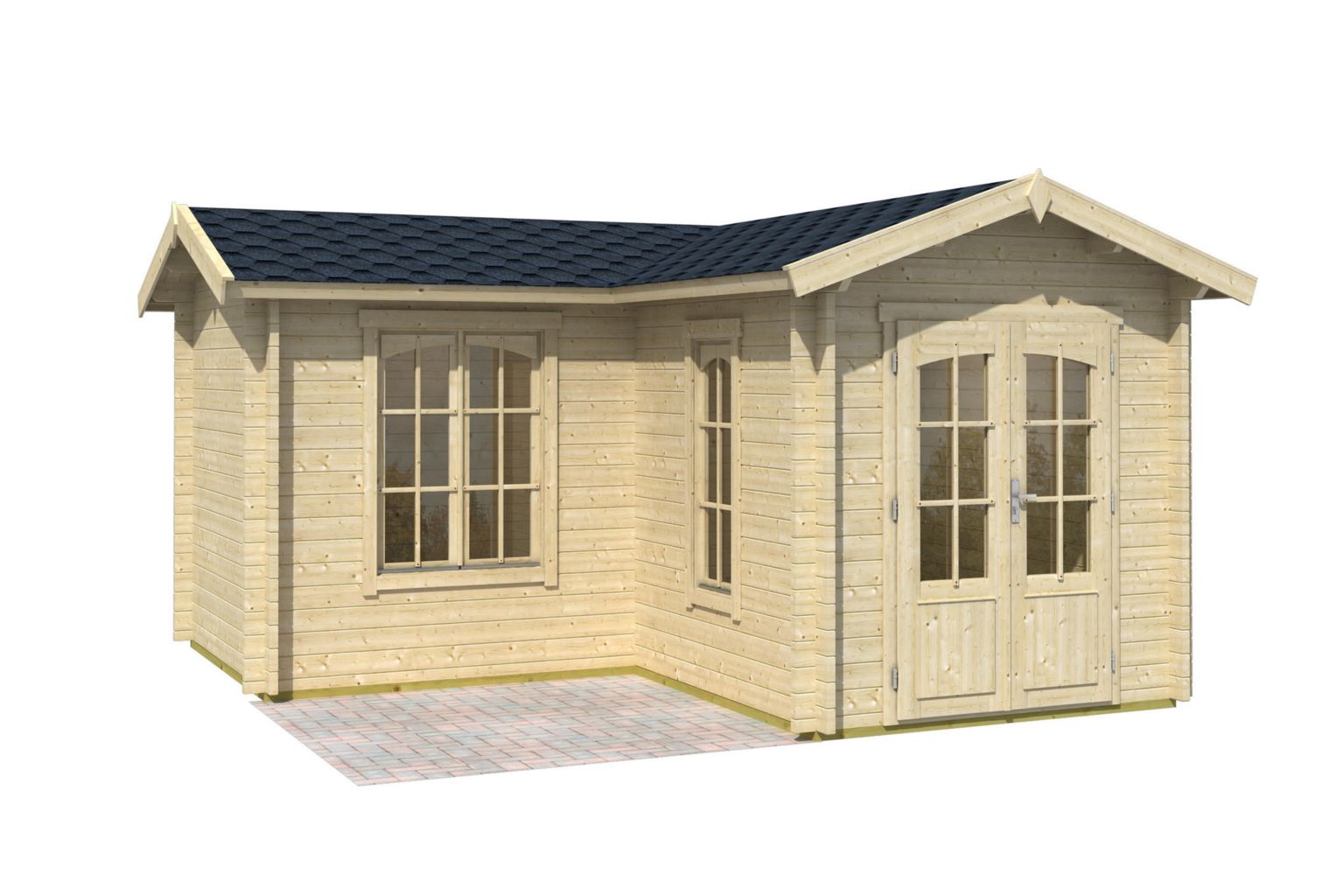

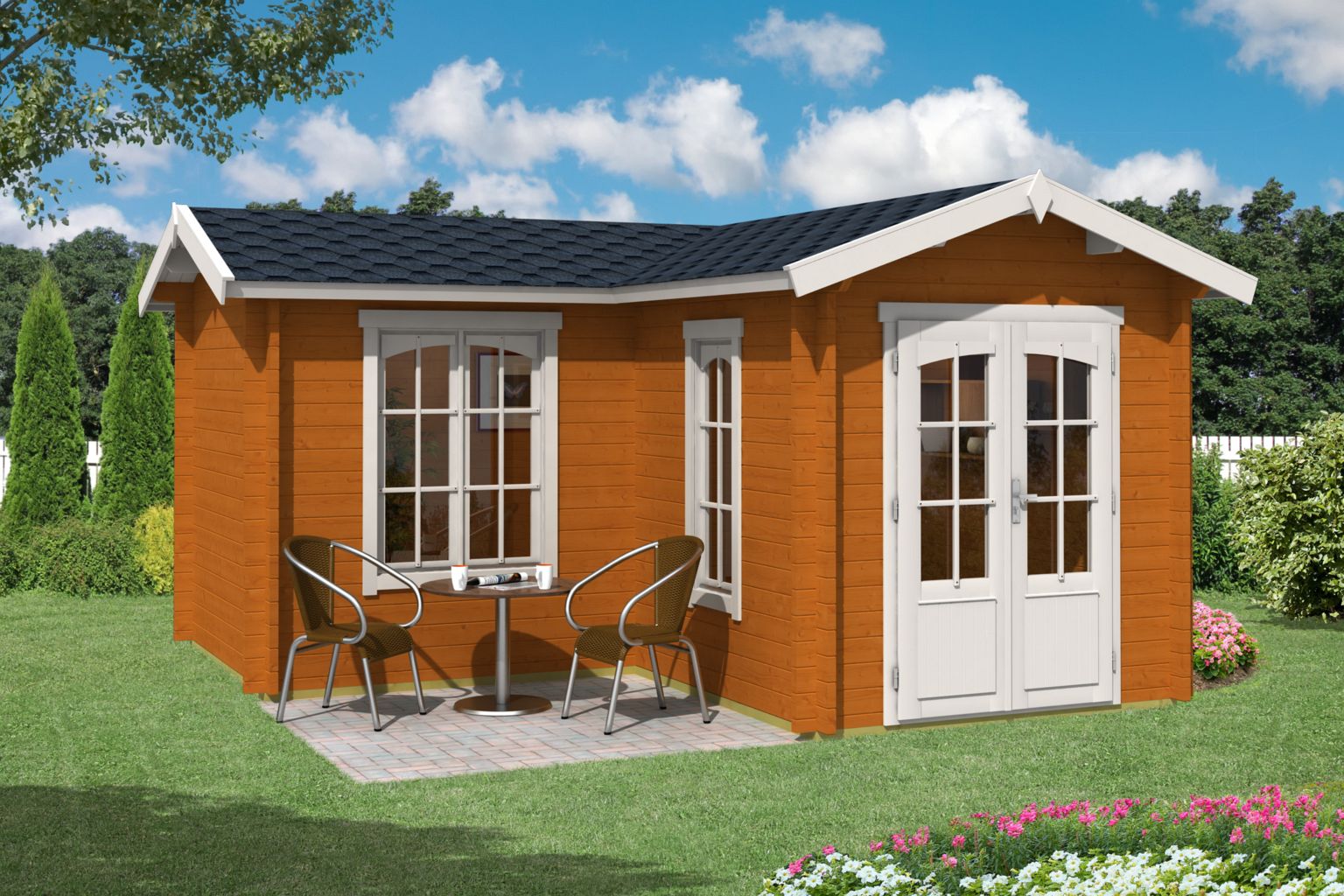

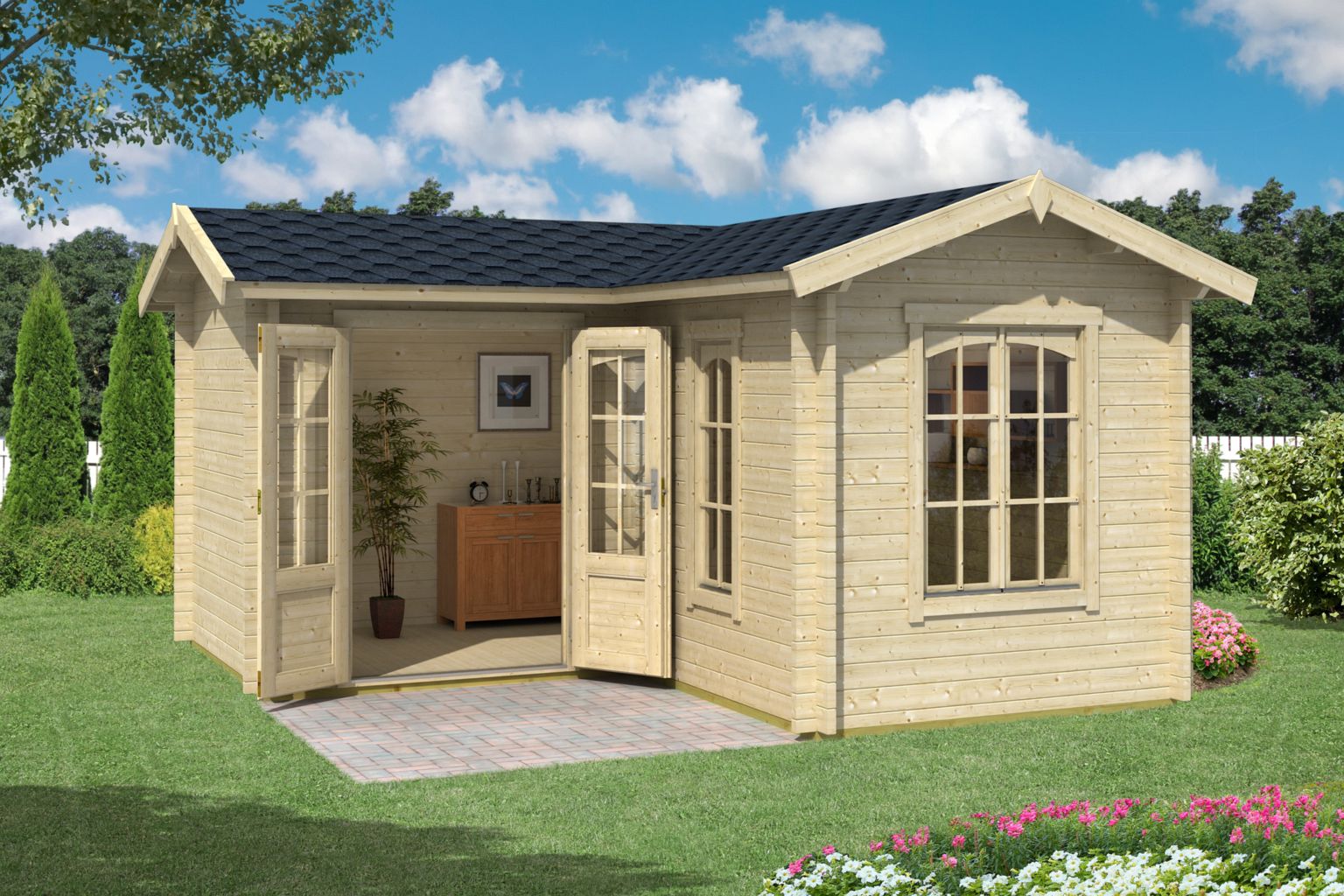

Portsmouth 44

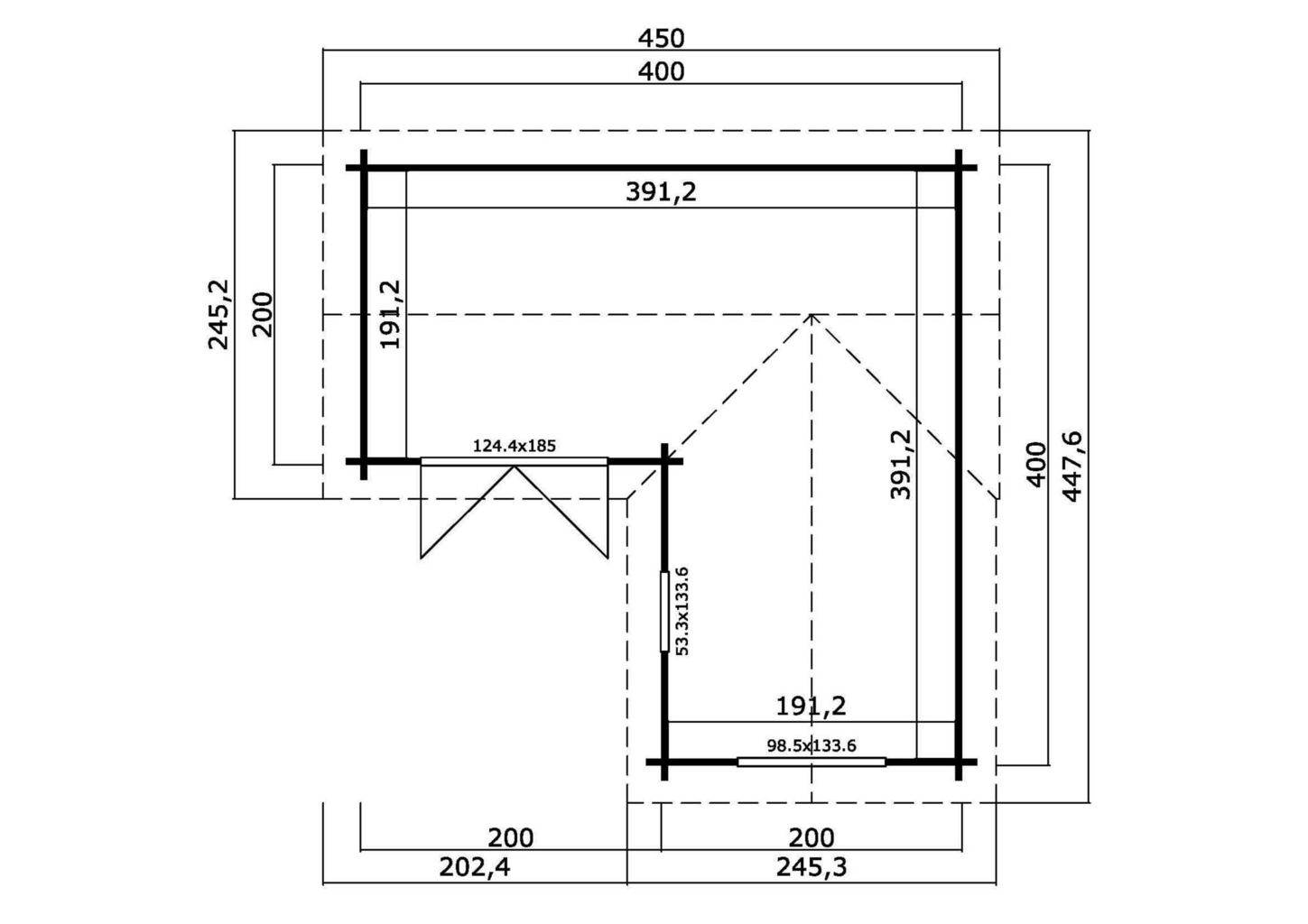

Total area | 17.64 m2 |
Wall area | 420x420 cm |
Wall thickness | 44 mm |
Building area | 16 m2 |
Windows | glazed unit |
Netarea | 11.3 m2 |
Wall height | 210.9 cm |
Ridge height | 245.1 cm |
Roof area | 19.4 m2 |
Roof overhang | 25 cm |
Roof slope | 19.4 ° |
Shingle consumption | 7 pakki |
Pakage dimensions | 630*118*63,5 cm |
Package weight | 1265 kg |
3 700 €
Portsmouth 44 tech. info
Our 'Lux' series delivery-kit generally includes:
- Impregnated base frame, floor joists and terrace boards (only if terrace is incuded)
- T&G floor boards, floor slats
- All wall details
- Tilt-turn or non-opening windows, with drip mold, glazed, with fittings, interior and exterior slats for the window
- Doors, glazed or solid wood (depending on the model), with lock and handle, including inner and outer boundary slats
- The roof structure with T&G roof boards, gable end boards and eaves boards.
- Storm fittings
- Installation accessories
- Installation instructions
The delivery-kit does not include:
- Roofing materials - these can be ordered separately, either roofing felt, bitumen shingles or Onduline self-adhesing aluminium roof film
- Delivery - can be ordered separately
- Installation - can be ordered separately (generally includes transportation)
- Finishing
Approved Estonian Quality !
